COMBAT SFX GOLD

• ATX 3.1 & PCIe 5.0
• Full modular design
• Cybenetics Gold Certified
• 92mm Fluid Dynamic Bearing Fan
• Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
• 100% Japanese Capacitors

瓦數

加入洽詢加入比較

概覽
規格

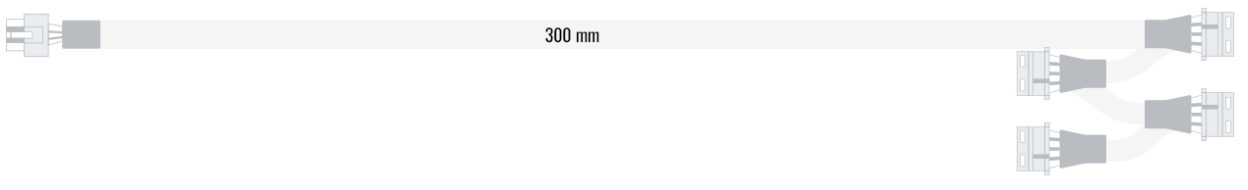

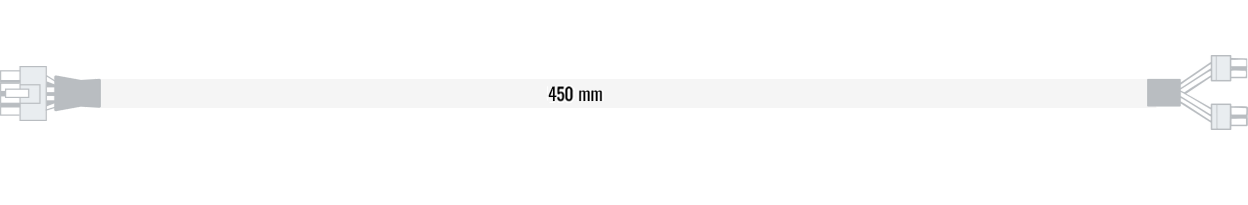

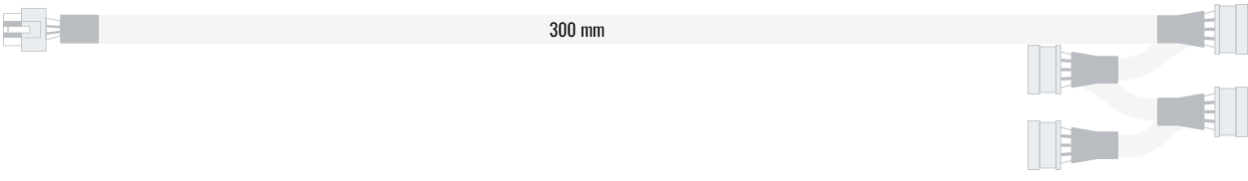

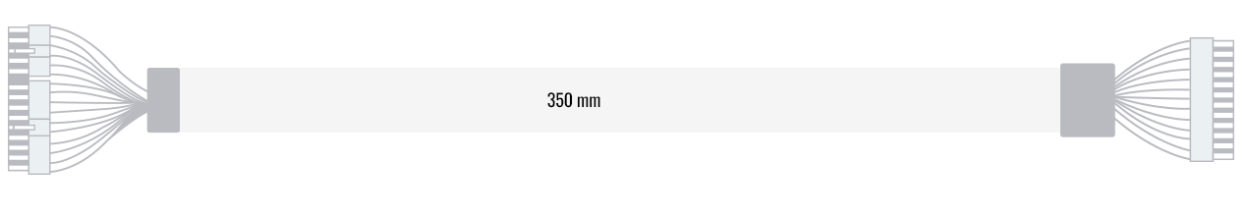

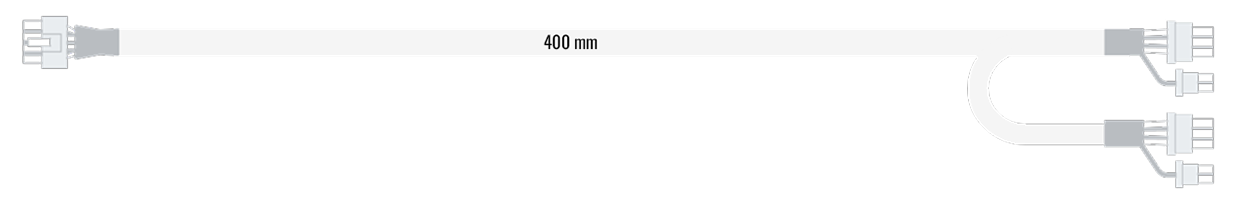

線材

ifor_EDM_COMBAT SFG_260608_A+_01

850W

750W

技術規格

型號		SF-850C92SFG	SF-750C92SFG
瓦數		850W	750W
80PLUS®認證
Cybenetics 效率認證		Cybenetics Gold 115V Certified(Overall efficiency: ≥ 87% to＜89%) Cybenetics Gold 230V Certified(Overall efficiency: ≥ 89% to＜91%)	Cybenetics Gold 115V Certified(Overall efficiency: ≥ 87% to＜89%) Cybenetics Gold 230V Certified(Overall efficiency: ≥ 89% to＜91%)
Cybenetics 噪音認證
Intel 電源供應器版本		EPS Ver.2.92 & ATX 3.1	EPS Ver.2.92 & ATX 3.1
相容CPU
機身尺寸		100mm(D) x 125mm(W) x 63.5mm(H)	100mm(D) x 125mm(W) x 63.5mm(H)
風扇規格	尺寸	92mm	92mm
風扇規格	軸承	H.Y.B.	H.Y.B.
電機特性	頻率	47-63Hz	47-63Hz
	PFC類型	Active PFC	Active PFC
	AC 輸入	Full Range(100V-240V)	Full Range(100V-240V)
	保護	OPP / OVP / OCP / OTP / SCP	OPP / OVP / OCP / OTP / SCP
	工作溫度	Passed 40℃ Hot Testing	Passed 40℃ Hot Testing
使用線材	背板模式	Full Modular	Full Modular
使用線材	出線材質	All Ultra Flexible Ribbon Cables	All Ultra Flexible Ribbon Cables
安規與環保認證	安規與電磁相容性	cTÜVus / TÜV / CB / CE / FCC / UKCA	cTÜVus / TÜV / CB / CE / FCC / UKCA
安規與環保認證	環保認證

model no.: SF-850C92SFG
AC INPUT	100-240V 10A 47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
850W	Max Output Current	20A	20A	70.8A	0.3A	3.0A
Max Combined Wattage	100W	849.6W	3.6W	15W
850W

model no.: SF-750C92SFG
AC INPUT	100-240V 10A 47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
750W	Max Output Current	20A	20A	62.5A	0.3A	3.0A
Max Combined Wattage	100W	750W	3.6W	15W
750W

850W

750W
